6.0 Cryptography

Cryptography is the science of securing data. It addresses four major concerns—confidentiality, authentication, integrity and non-repudiation. Encryption is the transformation of data into an unreadable form, using an encryption/decryption key. Encryption ensures privacy and confidentiality, keeping information hidden from anyone for whom it is not intended including those who can see the encrypted data.

6.1 Cryptosystems

A cryptosystem obeys a methodology (procedure). It includes: one or more encryption algorithms (mathematical formulae); keys used with the encryption algorithms; a key management system; plain text (the original text); and, ciphertext (the original text that has been obscured).

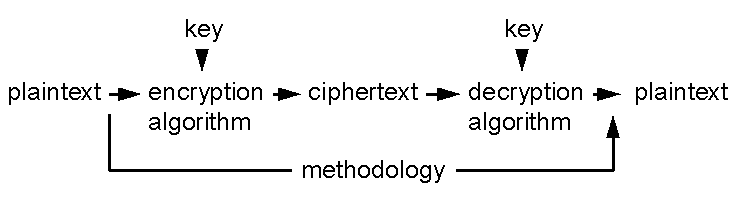

The methodology first applies the encryption algorithm and key to the plaintext to produce ciphertext. The ciphertext is transmitted to a destination where the same algorithm is used to decrypt it to produce the plaintext. The procedure (included in the methodology) to support key creation and distribution is not shown in the diagram.

6.1.0 Key-Based Methodology

In this methodology, the encryption algorithm combines with a key and plaintext to create ciphertext. The security of a strong key-based system resides with the secrecy of the key used with the encryption algorithm rather than the supposed secrecy of the algorithm. Many encryption algorithms are publicly available and have been well tested (e.g. Data Encryption Standard).

However, the main problem with any key-based methodology is how to create and move the keys securely among communicating parties. How does one establish a secure channel between the parties prior to transmitting keys?

Another problem is authentication. There are two potential areas of concern here:

There are two types of key-based methodologies—symmetric (private-key) and asymmetric (public-key). Each methodology uses its own procedures, key distribution, types of keys and encryption/decryption algorithms. The terminology employed in discussing these methodologies can be very confusing. The following terms are used:
Symmetric methodology Uses one key which both encrypts and decrypts using the same symmetric encryption algorithm

The key is distributed to the two communicating parties in a secure manner prior to transfer of encrypted data

Often called private or private-key methodology
Asymmetric methodology Uses symmetric encryption algorithms and symmetric keys to encrypt data

Uses asymmetric encryption algorithms and asymmetric keys to encrypt the symmetric key. The two keys are created and are linked together. The symmetric key encrypted with one must be decrypted by the other (in either direction) using the same asymmetric encryption algorithm.

The two linked asymmetric keys are created together. One must be distributed to the owner, and the other to the party which is keeping these keys (often called the CA) in a secure manner prior to transfer of data

Often called public or public-key methodology
Private key (1) Symmetric methodology Uses a single key which can both encrypt and decrypt. See above.
Private key (2) Symmetric (private) encryption key Symmetric private key
Private key (3) Asymmetric private encryption key Asymmetric private key

Asymmetric keys are created as pairs that are linked together. The words private key often mean the half of the asymmetric key pair that is kept private.

The asymmetric private key is a totally different thing from the symmetric private key.

Public key (1) Asymmetric methodology Uses a pair of keys, both of which are created together and are linked. Anything encrypted by one must be decrypted by the other.
Public key (2) Asymmetric (public) encryption key Asymmetric keys are created as pairs that are linked together.

The words public key often mean the half of the asymmetric key pair which is made publicly available.

Session key Symmetric (private) encryption key Used by asymmetric methodology for the actual data encryption of data using symmetric methodologies

Simply a symmetric private key (see above)

Encryption algorithm Mathematical formula Symmetric keys are required for symmetric algorithms

Asymmetric keys are required for asymmetric algorithms

You cannot use symmetric keys with asymmetric algorithms, and vice versa

Private cryptosystems Use symmetric algorithms and symmetric (private) keys to encrypt data Used by symmetric (private) cryptosystems
Public cryptosystems Use asymmetric algorithms and asymmetric keys to encrypt session keys

uses symmetric algorithms and symmetric keys to encrypt data

Used by asymmetric (public) cryptosystems only
Public/private Many asymmetric cryptosystem vendors define their methodologies as public/private Usually not clarified that asymmetric methodologies use symmetric methodologies to actually encrypt data

6.1.1 Symmetric (Private) Methodology

In this methodology, both encryption and decryption operations use the same key with the sender and receiver agreeing on the key before they can communicate. Provided the keys have not been compromised, authentication is implicitly resolved because only the sender has a key capable of encrypting and only the receiver has the same key capable of decrypting. Because the sender and the receiver are the only people who know this symmetric key, if the key is compromised, only these two users’ communication is compromised. The problem, which is the same for all types of cryptosystems, is how to distribute the symmetric (private) key securely.

Symmetric key encryption algorithms use small-length keys and can quickly encrypt large quantities of data.

The process involved with symmetric key systems is:

  1. Create, distribute and store the symmetric private key securely
  2. Sender creates a digital signature by hashing the plaintext and attaching the resulting string to the plaintext
  3. Sender applies the fast symmetric encryption/decryption algorithm with the symmetric private key to the package (plaintext and attached digital signature) to produce the ciphertext. Authentication happens inherently because only the sender has the symmetric private key and can encrypt the package. Only the receiver holding the symmetric private key and can decrypt this package
  4. Sender transfers the ciphertext. The private symmetric key is never transmitted over the unsecured communication lines.
  5. Receiver applies the same symmetric encryption/decryption algorithm with the same symmetric key (which the receiver already has) to the ciphertext to produce the original plaintext and digital signature. This authenticates whoever holds the private key.
  6. Receiver detaches the digital signature from the plaintext
  7. Receiver creates a digital signature by hashing the plaintext
  8. Receiver compares the two digital signatures to prove message integrity (unaltered data)
Services available today that use symmetric methodologies include: 6.1.2 Asymmetric (Public) Methodology

Here, the encryption and decryption keys are different from each other, although they are produced together. One key is made public; the other key is kept private. While both keys can encrypt and decrypt, data encrypted by one can only be decrypted by the other.

All asymmetric cryptosystems are subject to shortcut attacks as well as brute force, and therefore, must use much larger keys than symmetric cryptosystems to provide equivalent levels of security. This immediately impacts computing cost, although using elliptic curve algorithms may reduce this problem. Bruce Schneier in his book "Applied Cryptography: Protocols, Algorithms, and Source Code in C" provides the following table comparing equivalent key lengths:

56 bits 384 bits
64 bits 512 bits
80 bits 768 bits
112 bits 1792 bits
128 bits 2304 bits

In order to circumvent the slowness of the asymmetric encryption algorithms, a temporary, random, small, symmetric session key is generated for each message and is the only part encrypted by the asymmetric algorithm. The message itself is encrypted using this session key and an encryption/decryption algorithm. The small session key is then encrypted using the sender’s asymmetric private key and encryption/decryption algorithm. This encrypted session key along with the encrypted message is then transmitted to the receiver. The receiver uses the same asymmetric algorithm and the sender’s asymmetric public key to decrypt the session key, and the recovered plaintext session key is used to finally decrypt the message.

It is important in asymmetric cryptosystems that the session and asymmetric keys must be comparable in terms of the security they produce. If a short session key is used (e.g. 40 bit DES), it does not matter how large the asymmetric keys are. Hackers will attack the session key instead. The asymmetric public keys are susceptible to brute-force attacks partly because it is difficult to change them. Once broken, all current and future communication is compromised, often without anyone knowing.

The process involved with asymmetric-key systems is:

  1. Create and distribute the asymmetric public and private keys securely. The asymmetric private key is delivered to the owner. The asymmetric public key is stored in an X.500 database and managed by the Certification Authority (CA). Users must implicitly trust the secure creation, distribution and management of the keys. Further, if the creator and the person or system managing the keys are different, then the end user must implicitly trust that the creator of the keys has actually deleted his copies.
  2. Create a digital signature by hashing the plaintext. Encrypt the resulting digital signature using the sender’s asymmetric private key and attach the resulting string to the plaintext (only the sender has created the digital signature).
  3. Create a private symmetric key used only for this transmission (the session key), and apply it and the symmetric encryption/decryption algorithm to the plaintext and attached encrypted digital signature to produce the ciphertext.
  4. The problem of sending the session key to the receiver must now be addressed
  5. Make certain the sender has the Certification Authority’s (CA) asymmetric public key. Interception of unencrypted requests for the public key is a common form of attack. There may be a whole hierarchy of certificates attesting to the validity of the CA’s public key. X.509 describes different methods for establishing user access to the CA public keys, all of which provide an entry point to spoofers, and show that there is no system that guarantees the identity of the CA.
  6. Ask the CA for the receiver’s asymmetric public key. This process is vulnerable to the man-in-the-middle attack. The receiver’s asymmetric public key has been ‘digitally signed’ by the CA. This means that the CA has used the CA’s asymmetric private key to encrypt the receiver’s asymmetric public key. Since only the CA holds the CA’s asymmetric private key, then the receiver’s asymmetric public key came from the CA
  7. Once received, decrypt the receiver’s asymmetric public key using the CA’s asymmetric public key and an asymmetric encryption/decryption algorithm. Implicit trust in the CA and that the CA is not compromised are required. If the CA is compromised, the entire infrastructure is unusable. Those holding the public key can encrypt, but there is no way of knowing if the key has been compromised. (When you requested the CA’s public key, did you actually receive the CA’s public key or something else?)
  8. Using the receiver’s asymmetric public key (now received from the CA and decrypted) and an asymmetric encryption/decryption algorithm, encrypt the session key. Only those holding the receiver’s public key can encrypt, but there is no way of knowing if the key has been compromised
  9. Attach the encrypted session key to the ciphertext (which includes the previously encrypted digital signature
  10. Transfer the package (ciphertext that includes the digital signature and the attached encrypted session key). The encrypted session key is transmitted across the unsecured network and is an obvious target for various types of attacks.
  11. Receiver detaches the encrypted session key from the ciphertext
  12. The problem of decrypting the session key by the receiver must now be addressed
  13. Make certain the receiver has the CA’s asymmetric public key. The same comments as above can be made here.
  14. Using the receiver’s asymmetric private key and the same asymmetric encryption/decryption algorithm, receiver decrypts the session key
  15. Receiver applies the same symmetric encryption/decryption algorithm with the now unencrypted symmetric key (session key) to the ciphertext to produce the plaintext and attached hash or digital signature
  16. Receiver detaches the hash from the plaintext
  17. Receiver asks the CA for the sender’s asymmetric public key
  18. Once received, receiver decrypts the sender’s asymmetric public key using the CA’s public key and the correct asymmetric encryption/decryption algorithm. The same comments as above can be made here.
  19. Using the sender’s asymmetric public key and an asymmetric encryption/decryption algorithm, receiver decrypts the hash string
  20. Create a digital signature by hashing the plaintext
  21. Compare the two hashes to prove that the data has not been altered
6.1.3 Key Distribution

It is obvious that both types of cryptosystems have a problem distributing the keys.

Symmetric methodologies squarely face up to this fact and define how keys are to be moved between the parties before communication can take place. How this is done depends upon the security required. For lower security requirements, sending keys by a delivery mechanism of some kind (such as postal mail or a parcel delivery service) may be adequate. Banks use the postal service to deliver PINs, which are, in essence, easily crackable symmetric keys that may or may not unlock other keys, or your money! Very high security requirements may require hand delivery of keys, possibly in parts by several people.

Asymmetric methodologies try to get around the problem by encrypting the symmetric key and attaching it to the encrypted data. They then try to make it possible to distribute the asymmetric keys used to encrypt the symmetric key by employing a CA to store the public asymmetric key. The CA in turn digitally signs the keys with the CA’s private asymmetric key. Users of the system must also have a copy of the CA’s public key. In theory, this means that the communicating parties do not need to know about each other ahead of secure communication.

Proponents of asymmetric cryptosystems maintain that this mechanism proves authenticity and is sufficient.

The problem still remains, however. The asymmetric key pair must be created together. Both keys, whether they can be made publicly available or not, must be sent securely to the owner of the key, as well as to the Certification Authority. The only way to do this is by some kind of delivery mechanism for low security requirements, and hand-delivery for high security requirements.

The problems of the asymmetric mechanism include the following:

In spite of these major drawbacks, users must blindly trust the asymmetric cryptosystem.

Key management refers to the distribution, authentication and handling of keys. No matter what kind of cryptosystem is used, keys must be managed. Secure methods of management are very important as many attacks on key-based cryptosystems are aimed at key management procedures.
Physically distribute the keys Couriers and hand delivery are two examples. Of the two, hand delivery is better.

Secure organizations have written procedures surrounding key distribution

Can be audited and logged, although open to compromise by individuals

Used by both symmetric and asymmetric cryptosystems. In spite of claims that asymmetric cryptosystems avoid the problem of physical delivery of keys, the problem actually exists. X.509 assumes that the creator will release the asymmetric private key to the user (and/or the asymmetric public key to the CA) in a physically secure manner, and that suitable physical security measures are in place so that the creator and data operations are free from tampering.

Issue a common key from a central issuing authority Could be used by both symmetric and asymmetric cryptosystems

As each user must be able to communicate with the central authority securely in the first place, this is yet another situation where initial key exchange is a problem

If the central authority is compromised, further requests for keys are at risk; keys already in place may be safe depending on the cryptosystem

Allow access to public keys from a centralized certification authority and provide private keys to users Used by asymmetric cryptosystems

Users must blindly trust the entire system

A single security breach compromises the entire system

Hierarchical system of attestation leads to more potential intruder entry points—a CA must publicize its asymmetric public key and provide a certificate from a higher-level CA validating it. This sets up a hierarchy of CAs.

CA asymmetric private keys must be stored securely because compromise could result in undetectable forgeries

Web of trust Used by asymmetric cryptosystems

Users distribute and track each other’s keys, and trust in an informal, distributed fashion

Diffie-Hellman Exchange of a secret key over an insecure medium by two users without any prior secrets

Cannot be used to encrypt or decrypt messages

Based on the difficulty of taking logarithms in finite fields. If the elements are carefully chosen, and are large, then the discrete logarithm problem is computationally infeasible.

Vulnerable to man-in-the-middle attacks

Patented by PKP (Public Key Partners)

6.1.4 Encryption Ciphers or Algorithms

Key-based algorithms disguise data so that it cannot be read by anyone without a decryption key. They are divided into two classes depending on the cryptography methodology they directly support. Please read Schneier’s Applied Cryptography for a full description of the algorithms.

6.1.5 Symmetric Algorithms

The same private key is used to encrypt and decrypt. This type of algorithm is used by both symmetric and asymmetric methodologies to encrypt data.
DES (Data Encryption Standard) Popular, product cipher used by the Data Encryption Standard of the US Government

64-bit block cipher, 64-bit key (only 56 are needed), 16 rounds

Operates in four modes:

  • ECB—Electronic Code Book (native DES), using two distinct algorithms
  • CBC—Cipher Block Chaining in which the encryption of each block depends upon the encryption of the previous block
  • OFB—Output Feedback, used as a random number generator
  • CFB—Cipher Feedback, used for message authentication codes
3-DES or Triple DES 64-bit block cipher, using the DES cipher 3 times, three distinct 56-bit keys

Strong under all attacks

Chained 3-DES Standard Triple-DES with the addition of a feedback mechanism such as CBC, OFB or CFB

Very strong under all attacks

FEAL (Fast Encryption Algorithm) Block cipher, used as an alternative to DES

Broken, although new versions have been proposed

IDEA (International Data Encryption Algorithm) 64-bit block cipher, 128-bit key, 8 rounds

Recently proposed; although it has not yet received enough scrutiny for full confidence, it is considered superior to DES

Skipjack Developed by NSA as part of the US Government Clipper and Capstone projects

Classified as secret, although its strength does not depend only on the secrecy of the algorithm

64-bit block cipher, 80-bit keys used in ECB, CFB, OFB or CBC modes, 32 rounds

RC2 64-bit block cipher, variable key sizes

Approximately twice as fast as DES

Can be used in same modes as DES including triple encryption

Confidential algorithm proprietary to RSA Data Security

RC4 Stream cipher, byte-oriented, variable key size

Approximately 10 times as fast as DES

Confidential algorithm proprietary to RSA Data Security

RC5 32, 64 or 128-bit variable block size, 0 to 2048 variable key size, 0 to 255 rounds

A fast block cipher

Proprietary to RSA Data Security

CAST 64-bit block cipher, 40 to 64 bit keys, 8 rounds

No known way to break other than brute force

Generally, the particular S-boxes used (which form the strength of the algorithm) are not made public

Blowfish 64-bit block cipher, variable, up to 448-bit key, 16 rounds, each consisting of a key-dependent permutation and a key-and-data-dependent substitution

Faster than DES

Designed for 32-bit machines

One-time pad A proven unbreakable cipher

The key (same length as the text) is the next ‘n’ bits of randomly created bits found on a pad to which both the sender and the receiver have access. As soon as the bits are used, they are destroyed and the next bits on the pad are used for the next encryption

Stream ciphers Fast, symmetric encryption algorithms, usually operating on bits (not blocks) of data

Developed as an approximation of the one-time pad which, while not as secure as the one-time pad, are at least practical

6.1.6 Asymmetric Algorithms

Asymmetric algorithms are used by asymmetric cryptosystem methodologies in order to encrypt a symmetric session key (which is actually used to encrypt the data).

Two distinct keys are used—one that is publicly available, and the other that is kept private and secret. Usually both keys perform encryption and decryption functions. However, data encrypted by one can only be decrypted by the companion key.
RSA Popular asymmetric encryption algorithm, whose security depends on the difficulty in factoring large integers
ECC (Elliptic Curve Cryptosystem) Uses the algebraic system defined on the points of an elliptic curve to provide asymmetric cryptographic algorithms

Emerging as competition to other asymmetric algorithms because it offers equivalent security using shorter key lengths and faster performance.

Current implementations indicate that these systems are far more efficient than other public-key systems. Performance figures show an order of magnitude improvement in efficiency over RSA, Diffie-Hellman and DSA.

ElGamal Variant of the Diffie-Hellman which can be used for both digital signatures and encryption

6.1.7 Hash Functions

Hash functions are central to key-based cryptosystems. They are relatively easy to compute, but almost impossible to decrypt. A hash function takes a variable size input and returns a fixed size string (sometimes called a Message Digest), usually 128 bits. Hash functions are used to detect modification of a message (i.e. provides a digital signature).
MD2 Slowest, optimized for 8-bit machines
MD4 Fastest, optimized for 32-bit machines

Now broken

MD5 Most commonly used of the MD functions

similar to MD4, but with added security features making it 33% slower than MD4

Provides data integrity

Considered secure

SHA (Secure Hash Algorithm) Produces 160-bit hash values from variable-sized input

Proposed by NIST and adopted by the US Government as a standard

Designed for use with the proposed DSS (Digital Signature Standard) and part of the US Government’s Capstone project

6.1.8 Authentication Mechanisms

These mechanisms securely and reliably confirm identity or authenticity.
Passwords or PINs (Personal Identification Numbers) Something a user knows and shares with the entity at the other end

Typically part of a two way handshake

Can be exchanged in both directions to obtain mutual authentication

One-time password Password provided is never reused

Time is often used as the constantly changing value on which the password is based

CHAP (Challenge Handshake Authentication Protocol) One side initiates an authentication exchange, is presented with a unique and unpredictable challenge value, and based on a secretly shared value, is able to calculate and return an appropriate response

Can be used to provide user authentication as well as device authentication


Dialing in over a telephone to a server which is configured to dial back to a specified number associated with the user

6.1.9 Digital Signatures and Time Stamps

A digital signature provides data integrity, but does not provide confidentiality. The digital signature is attached to the message and both can be encrypted if confidentiality is desired. The addition of a timestamp to a digital signature provides a limited form of non-repudiation.
DSA (Digital Signature Authorization) Public key algorithm used for digital signatures but not for encryption

Private hashing and public verification—only one person can produce the hash for a message, but everyone can verify that the hash is correct

Based on the difficulty of taking logarithms in finite fields

RSA Patented RSA digital signature proves the contents of a message as well as the identity of the signer

The sender creates a hash of the message, and then encrypts it with the sender’s private key. The receiver uses the sender’s public key to decrypt the hash, hashes the message himself, and compares the two hashes.

MAC (Message Authentication Code) Digital signature, using hashing schemes similar to MD or SHA, but the hash value is a function of both the pre-image and a private key
DTS (Digital Timestamp Service) Issues timestamps which associate a date and time with a digital document in a cryptographically strong manner


Section References

6.0 Chandler, Janet, Cryptography 101: Technical White Paper, Signal 9 Solutions, Kanata Ontario.
